readtextgrid parses Praat textgrids into R dataframes.
Install from CRAN:
install.packages("readtextgrid")Install the development version from Github:
install.packages("remotes")

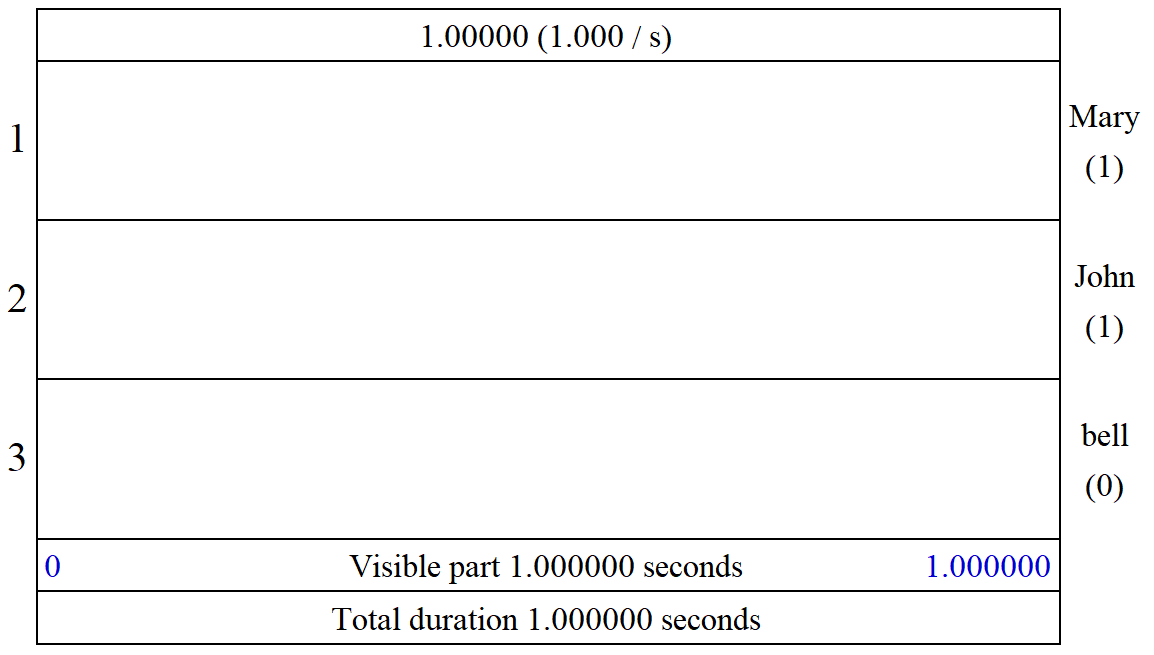

remotes::install_github("tjmahr/readtextgrid")Here is the example textgrid created by Praat. It was created using
New -> Create TextGrid... with default settings in
Praat.
This textgrid is bundled with this R package. We can locate the file
with example_textgrid(). We read in the textgrid with
read_textgrid().
library(readtextgrid)
# Locates path to an example textgrid bundled with this package
tg <- example_textgrid()
read_textgrid(path = tg)
#> # A tibble: 3 × 10
#> file tier_num tier_name tier_type tier_xmin tier_xmax
#> <chr> <dbl> <chr> <chr> <dbl> <dbl>
#> 1 Mary_John_bell.TextGrid 1 Mary IntervalTier 0 1
#> 2 Mary_John_bell.TextGrid 2 John IntervalTier 0 1
#> 3 Mary_John_bell.TextGrid 3 bell TextTier 0 1
#> xmin xmax text annotation_num
#> <dbl> <dbl> <chr> <int>
#> 1 0 1 "" 1
#> 2 0 1 "" 1
#> 3 NA NA <NA> NAThe dataframe contains one row per annotation: one row for each
interval on an interval tier and one row for each point on a point tier.
If a point tier has no points, it is represented with single row with
NA values.
The columns encode the following information:
file filename of the textgrid. By default this column
uses the filename in path. A user can override this value
by setting the file argument in
read_textgrid(path, file), which can be useful if textgrids
are stored in speaker-specific folders.tier_num the number of the tier (as in the left margin
of the textgrid editor)tier_name the name of the tier (as in the right margin
of the textgrid editor)tier_type the type of the tier.
"IntervalTier" for interval tiers and
"TextTier" for point tiers (this is the terminology used
inside of the textgrid file format).tier_xmin, tier_xmax start and end times
of the tier in secondsxmin, xmax start and end times of the
textgrid interval or point tier annotation in secondstext the text in the annotationannotation_num the number of the annotation in that
tier (1 for the first annotation, etc.)Suppose you have data on multiple speakers with one folder of
textgrids per speaker. As an example, this package has a folder called
speaker_data bundled with it representing 5 five textgrids
from 2 speakers.
speaker-data
+-- speaker001
| +-- s2T01.TextGrid
| +-- s2T02.TextGrid
| +-- s2T03.TextGrid
| +-- s2T04.TextGrid
| \-- s2T05.TextGrid
\-- speaker002
+-- s2T01.TextGrid
+-- s2T02.TextGrid
+-- s2T03.TextGrid
+-- s2T04.TextGrid
\-- s2T05.TextGridFirst, we create a vector of file-paths to read into R.
# Get the path of the folder bundled with the package
data_dir <- system.file(package = "readtextgrid", "speaker-data")
# Get the full paths to all the textgrids
paths <- list.files(
path = data_dir,
pattern = "TextGrid$",
full.names = TRUE,
recursive = TRUE
)We can use purrr::map_dfr()–map the
read_textgrid function over the paths and
combine the dataframes (_dfr)—to read all these textgrids
into R. But note that this way loses the speaker information.
library(purrr)
map_dfr(paths, read_textgrid)
#> # A tibble: 150 × 10
#> file tier_num tier_name tier_type tier_xmin tier_xmax xmin
#> <chr> <dbl> <chr> <chr> <dbl> <dbl> <dbl>
#> 1 s2T01.TextGrid 1 words IntervalTier 0 1.35 0
#> 2 s2T01.TextGrid 1 words IntervalTier 0 1.35 0.297
#> 3 s2T01.TextGrid 1 words IntervalTier 0 1.35 0.522
#> 4 s2T01.TextGrid 1 words IntervalTier 0 1.35 0.972
#> 5 s2T01.TextGrid 2 phones IntervalTier 0 1.35 0
#> 6 s2T01.TextGrid 2 phones IntervalTier 0 1.35 0.297
#> 7 s2T01.TextGrid 2 phones IntervalTier 0 1.35 0.36
#> 8 s2T01.TextGrid 2 phones IntervalTier 0 1.35 0.495
#> 9 s2T01.TextGrid 2 phones IntervalTier 0 1.35 0.522
#> 10 s2T01.TextGrid 2 phones IntervalTier 0 1.35 0.621
#> xmax text annotation_num
#> <dbl> <chr> <int>
#> 1 0.297 "" 1
#> 2 0.522 "bird" 2
#> 3 0.972 "house" 3
#> 4 1.35 "" 4
#> 5 0.297 "sil" 1
#> 6 0.36 "B" 2
#> 7 0.495 "ER1" 3
#> 8 0.522 "D" 4
#> 9 0.621 "HH" 5
#> 10 0.783 "AW1" 6
#> # ℹ 140 more rowsWe can use purrr::map2_dfr() and some dataframe
manipulation to add the speaker information.
library(dplyr)
# This tells read_textgrid() to set the file column to the full path
data <- map2_dfr(paths, paths, read_textgrid) |>
mutate(
# basename() removes the folder part from a path,
# dirname() removes the file part from a path
speaker = basename(dirname(file)),
file = basename(file),
) |>
select(
speaker, everything()
)
data
#> # A tibble: 150 × 11
#> speaker file tier_num tier_name tier_type tier_xmin tier_xmax
#> <chr> <chr> <dbl> <chr> <chr> <dbl> <dbl>
#> 1 speaker001 s2T01.TextGrid 1 words IntervalTier 0 1.35
#> 2 speaker001 s2T01.TextGrid 1 words IntervalTier 0 1.35
#> 3 speaker001 s2T01.TextGrid 1 words IntervalTier 0 1.35
#> 4 speaker001 s2T01.TextGrid 1 words IntervalTier 0 1.35
#> 5 speaker001 s2T01.TextGrid 2 phones IntervalTier 0 1.35
#> 6 speaker001 s2T01.TextGrid 2 phones IntervalTier 0 1.35
#> 7 speaker001 s2T01.TextGrid 2 phones IntervalTier 0 1.35
#> 8 speaker001 s2T01.TextGrid 2 phones IntervalTier 0 1.35
#> 9 speaker001 s2T01.TextGrid 2 phones IntervalTier 0 1.35
#> 10 speaker001 s2T01.TextGrid 2 phones IntervalTier 0 1.35
#> xmin xmax text annotation_num
#> <dbl> <dbl> <chr> <int>
#> 1 0 0.297 "" 1
#> 2 0.297 0.522 "bird" 2
#> 3 0.522 0.972 "house" 3
#> 4 0.972 1.35 "" 4
#> 5 0 0.297 "sil" 1
#> 6 0.297 0.36 "B" 2
#> 7 0.36 0.495 "ER1" 3
#> 8 0.495 0.522 "D" 4
#> 9 0.522 0.621 "HH" 5
#> 10 0.621 0.783 "AW1" 6
#> # ℹ 140 more rowsAnother strategy would be to read the textgrid dataframes into a list
column and unnest() them.
# Read dataframes into a list column
data_nested <- tibble(
speaker = basename(dirname(paths)),
data = map(paths, read_textgrid)
)
# We have one row per textgrid dataframe because `data` is a list column
data_nested
#> # A tibble: 10 × 2
#> speaker data
#> <chr> <list>
#> 1 speaker001 <tibble [13 × 10]>
#> 2 speaker001 <tibble [15 × 10]>
#> 3 speaker001 <tibble [16 × 10]>
#> 4 speaker001 <tibble [12 × 10]>
#> 5 speaker001 <tibble [19 × 10]>
#> 6 speaker002 <tibble [13 × 10]>
#> 7 speaker002 <tibble [15 × 10]>
#> 8 speaker002 <tibble [16 × 10]>
#> 9 speaker002 <tibble [12 × 10]>
#> 10 speaker002 <tibble [19 × 10]>
# promote the nested dataframes into the main dataframe
tidyr::unnest(data_nested, "data")
#> # A tibble: 150 × 11
#> speaker file tier_num tier_name tier_type tier_xmin tier_xmax xmin xmax
#> <chr> <chr> <dbl> <chr> <chr> <dbl> <dbl> <dbl> <dbl>
#> 1 speaker001 s2T0… 1 words Interval… 0 1.35 0 0.297
#> 2 speaker001 s2T0… 1 words Interval… 0 1.35 0.297 0.522
#> 3 speaker001 s2T0… 1 words Interval… 0 1.35 0.522 0.972
#> 4 speaker001 s2T0… 1 words Interval… 0 1.35 0.972 1.35
#> 5 speaker001 s2T0… 2 phones Interval… 0 1.35 0 0.297
#> 6 speaker001 s2T0… 2 phones Interval… 0 1.35 0.297 0.36
#> 7 speaker001 s2T0… 2 phones Interval… 0 1.35 0.36 0.495
#> 8 speaker001 s2T0… 2 phones Interval… 0 1.35 0.495 0.522
#> 9 speaker001 s2T0… 2 phones Interval… 0 1.35 0.522 0.621
#> 10 speaker001 s2T0… 2 phones Interval… 0 1.35 0.621 0.783
#> # ℹ 140 more rows
#> # ℹ 2 more variables: text <chr>, annotation_num <int>Do you have thousands of textgrids to read? The following workflow
can speed things up. We are going to read the textgrids in
parallel. We use the future package to manage the parallel
computation. We use the furrr package to get future-friendly versions of
the purrr functions. We tell future to use a multisession
plan for parallelism: Do the extra computation on separate
R sessions in the background. Then everything else is the same. Just
replace map() with future_map().
library(future)
library(furrr)
plan(multisession, workers = 4)
data_nested <- tibble(
speaker = basename(dirname(paths)),
data = future_map(paths, read_textgrid)
)By default, readtextgrid uses readr::guess_encoding() to
determine the encoding of the textgrid before reading it in. But if you
know the encoding beforehand, you can skip this guessing. In my limited
testing, I found that setting the encoding could reduce
benchmark times by 3–4% compared to guessing the encoding.
Here, we read 100 textgrids using different approaches to benchmark the results.
paths_bench <- sample(paths, 100, replace = TRUE)
bench::mark(
lapply_guess = lapply(paths_bench, read_textgrid),
lapply_set = lapply(paths_bench, read_textgrid, encoding = "UTF-8"),
future_guess = future_map(paths_bench, read_textgrid),
future_set = future_map(paths_bench, read_textgrid, encoding = "UTF-8"),
min_iterations = 5,
check = TRUE
)
#> Warning: Some expressions had a GC in every iteration; so filtering is
#> disabled.
#> # A tibble: 4 × 6
#> expression min median `itr/sec` mem_alloc `gc/sec`
#> <bch:expr> <bch:tm> <bch:tm> <dbl> <bch:byt> <dbl>
#> 1 lapply_guess 3.61s 3.67s 0.262 183.89MB 1.89
#> 2 lapply_set 3.52s 3.54s 0.278 176.01MB 1.61
#> 3 future_guess 1.33s 1.36s 0.732 5.14MB 0
#> 4 future_set 1.24s 1.27s 0.783 5.14MB 0The following columns are often helpful:
duration of an intervalxmid midpoint of an intervaltotal_annotations total number of annotations on a
tierHere is how to create them:
data |>
# grouping needed for counting annotations per tier per file per speaker
group_by(speaker, file, tier_num) |>
mutate(
duration = xmax - xmin,
xmid = xmin + (xmax - xmin) / 2,
total_annotations = sum(!is.na(annotation_num))
) |>
ungroup() |>
glimpse()
#> Rows: 150
#> Columns: 14
#> $ speaker <chr> "speaker001", "speaker001", "speaker001", "speaker00…
#> $ file <chr> "s2T01.TextGrid", "s2T01.TextGrid", "s2T01.TextGrid"…
#> $ tier_num <dbl> 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 1, 1, 1, 1, 2…
#> $ tier_name <chr> "words", "words", "words", "words", "phones", "phone…
#> $ tier_type <chr> "IntervalTier", "IntervalTier", "IntervalTier", "Int…
#> $ tier_xmin <dbl> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…
#> $ tier_xmax <dbl> 1.348571, 1.348571, 1.348571, 1.348571, 1.348571, 1.…
#> $ xmin <dbl> 0.000, 0.297, 0.522, 0.972, 0.000, 0.297, 0.360, 0.4…
#> $ xmax <dbl> 0.297000, 0.522000, 0.972000, 1.348571, 0.297000, 0.…
#> $ text <chr> "", "bird", "house", "", "sil", "B", "ER1", "D", "HH…
#> $ annotation_num <int> 1, 2, 3, 4, 1, 2, 3, 4, 5, 6, 7, 8, 9, 1, 2, 3, 4, 1…
#> $ duration <dbl> 0.29700000, 0.22500000, 0.45000000, 0.37657143, 0.29…
#> $ xmid <dbl> 0.148500, 0.409500, 0.747000, 1.160286, 0.148500, 0.…
#> $ total_annotations <int> 4, 4, 4, 4, 9, 9, 9, 9, 9, 9, 9, 9, 9, 4, 4, 4, 4, 1…This tip is written from the perspective of a Windows user who uses git bash for a terminal.
To open textgrids in Praat, you can tell R to call Praat from the
command line. You have to know where the location of the Praat binary is
though. I like to keep a copy in my project directories. So, assuming
that Praat.exe in my working folder, the following would open the 10
textgrids in paths in Praat.
system2(
command = "./Praat.exe",
args = c("--open", paths),
wait = FALSE
)readtextgrid supports textgrids created by Praat by using
Save as text file.... It uses a parsing strategy based on
regular expressions targeting indentation patterns and text flags in the
file format. The formal
specification of the textgrid format, however, is much more
flexible. As a result, not every textgrid that Praat can open—especially
the minimal “short text” files—is compatible with this package.
readtextgrid was created to process data from the WISC Lab project. Thus, development of this package was supported by NIH R01DC009411 and NIH R01DC015653.
